Smoke Shaft Hatch for Safe and Controlled Smoke Ventilation

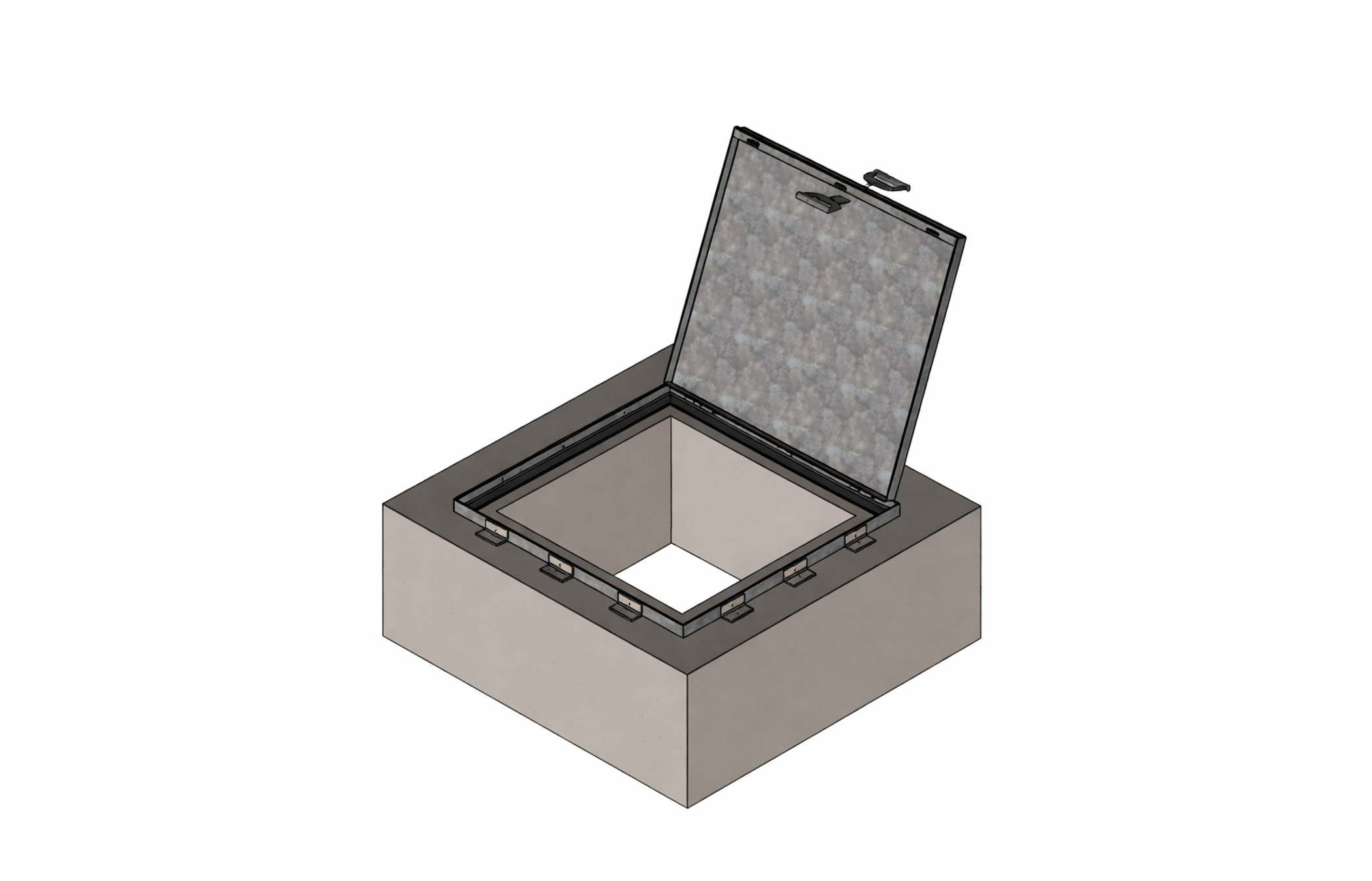

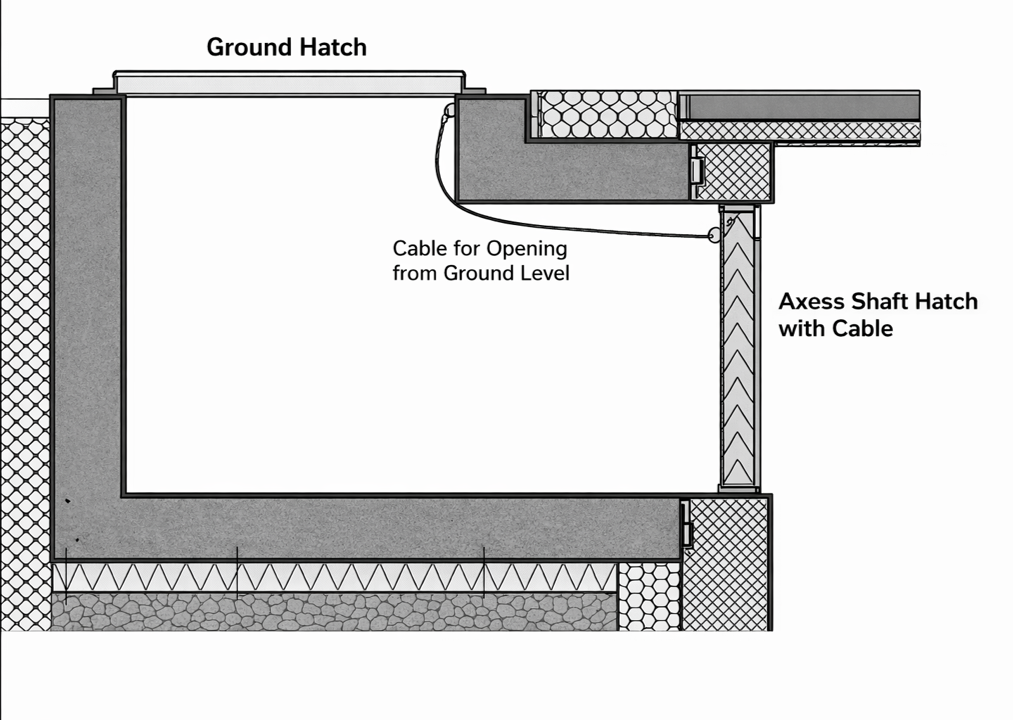

The Axess Smoke Shaft Hatch is specifically designed for installation in smoke shafts and engineered to provide safe and controlled smoke extraction in the event of a fire. The hatch is bottom-hinged, held closed by magnets, and can be manually opened from above using a steel cable when required.

To meet various environmental and functional requirements, it is manufactured in hot-dip galvanized steel, stainless steel, or aluminium.

Technical Specifications

• Model: Axess Smoke Shaft Hatch
• Material: Aluminium, hot-dip galvanized steel, or stainless steel AISI 304/316
• Dimensions: Bespoke sizes available
• Opening method: Manual opening with steel cable
  • Standard steel cable length: 2 m

Options & Customization

• Steel cable length can be customized upon request
• Fixing options: Surface-mounted fixing brackets or vertical concealed fixing through the frame
• Ventilation grille
• Insulated lid (mineral wool insulation board) for temperature-sensitive installations or reduced energy loss

Applications

• Smoke shafts below ground level
• Hard-to-access spaces where manual opening is not possible

Benefits

• Robust and flexible construction – engineered for strength, stability, and long-term performance in demanding environments
• Multiple locking and configuration options – available with a range of locking systems and adaptable configuration choices
• Customizable in color, size, and functionality – tailored in dimensions, RAL color, and functional features to meet specific project requirements

Installation

Always read the installation instructions carefully before starting, as these may vary depending on the model and options.

Installation must be carried out by qualified personnel and adapted to project-specific conditions.

Operation & Maintenance

Always follow the specific operation and maintenance instructions provided with your order, as they may vary between models, materials, and options.

• Before operating the unit, ensure that there are no obstructions in the movement path of the panel
• The wall panel should be opened and cleaned at least every six months using clean water, a mild detergent, and a soft cloth or sponge
  • Avoid abrasive cleaning agents
• Ensure that the space between the panel and the frame is free from gravel and dust
• Hinges must be kept clean and lubricated when necessary
• Ensure that the hinges can move freely along their intended range of motion during opening and closing. Avoid touching or interfering with the hinges during operation, as they may become misaligned and pose a risk of pinching
