Durable Zintec Access Panel for Ceilings
CAD C is a robust and functional access panel for ceilings, manufactured from durable Zintec with an optional RAL finish. It integrates easily into suspended ceilings without disrupting the overall aesthetic. The hatch combines excellent corrosion resistance with long service life and is designed for environments where reliable access to ceiling installations is essential. It is certified according to EN 14975 and is well-suited for commercial buildings, technical rooms, and public spaces.
CAD C provides a durable and practical solution for projects where functionality, quality, and longevity are key considerations. It can be advantageously combined with our external roof hatches and with our Zip ladders 4–7.
Model: CAD C
Applications: CAD C is suitable for ceiling hatches in public spaces and office buildings, as well as technical rooms where service access is required. The hatch is particularly suitable for spaces with acoustic and fire safety requirements, and for energy-efficient buildings where good insulation is important, making it a versatile solution for both functionality and safety in ceilings.
Material: Zintec (cold-rolled, zinc-coated steel)
Standard Color: White RAL 9010
Opening Method: Opens from below using a key
Lock Options: Square lock (standard) or 3-point lock for enhanced security and sealing
Any RAL color
Fire Rating FR60
Sound Insulation: 35 dB or 46 dB
Thermal Insulation: U-value of 0.567 W/m²K for energy efficiency and comfort
Certified to European Standard EN 14975 for inspection hatches, ensuring reliable performance, durability, and safe access to ceiling installations.
Fire Rating FR60: Fire resistance tested according to BS EN 1634-1:2008 and BS EN 1363-1:1999.
EI60 or E60 depending on configuration
Sound Insulation: 35 dB or 46 dB, depending on requirements and installation
Always read the installation instructions provided with your order carefully before beginning installation, as these may vary depending on configuration and optional features.

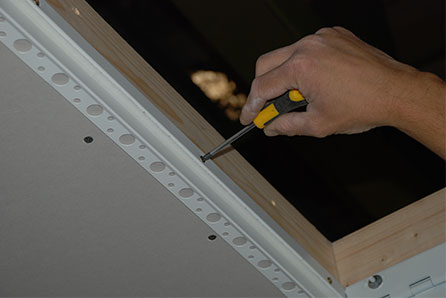

CAD C is installed flush in ceilings and should be fitted by a qualified installer to ensure proper fire and sound rating. The hatch’s sealing, functionality, and appearance are affected by the choice of lock and level of insulation.
Always follow the specific operating and maintenance instructions provided with your order. Instructions may vary between different models, materials, and optional features.
Regular inspections are especially recommended for high-usage environments.
What is an access panel used for?
An access panel provides easy access to installations that are otherwise hidden behind walls or ceilings, such as pipes, valves, electrical wiring, or junction boxes. Installing an access panel allows service, maintenance, and troubleshooting to be performed without having to open or damage the wall or ceiling.
Where are access panels installed?
Access panels are typically installed in walls, ceilings, or service shafts where access to technical installations is required. They are commonly used in residential buildings, offices, public buildings, and technical rooms.
What size access panel should I choose?
The size of the access panel should be adapted to the installation behind the wall or ceiling. The opening must be large enough to safely and efficiently perform service and maintenance on the installations.
Are access panels available in different materials?
Yes, access panels are available in various materials, such as galvanized steel, stainless steel, or aluminum. The choice of material depends on the installation location and requirements for durability, design, or corrosion resistance.
Are there fire-rated access panels?
Yes, fire-rated access panels are available. They are tested according to applicable standards and used in walls and shafts where fire protection is required. These panels can have different fire ratings, such as EI30, EI60, or EI120.
