Fire-rated access panel prepared for Abloy/ASSA locks

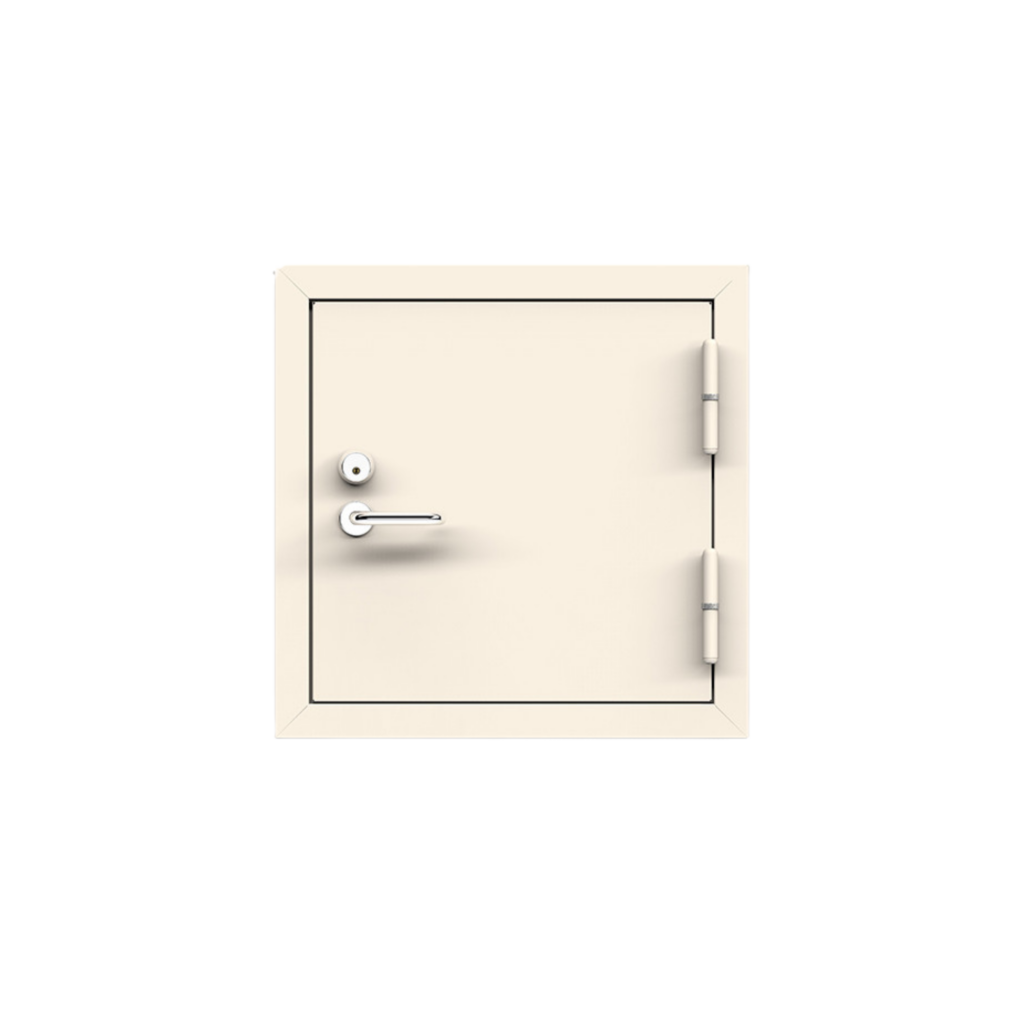

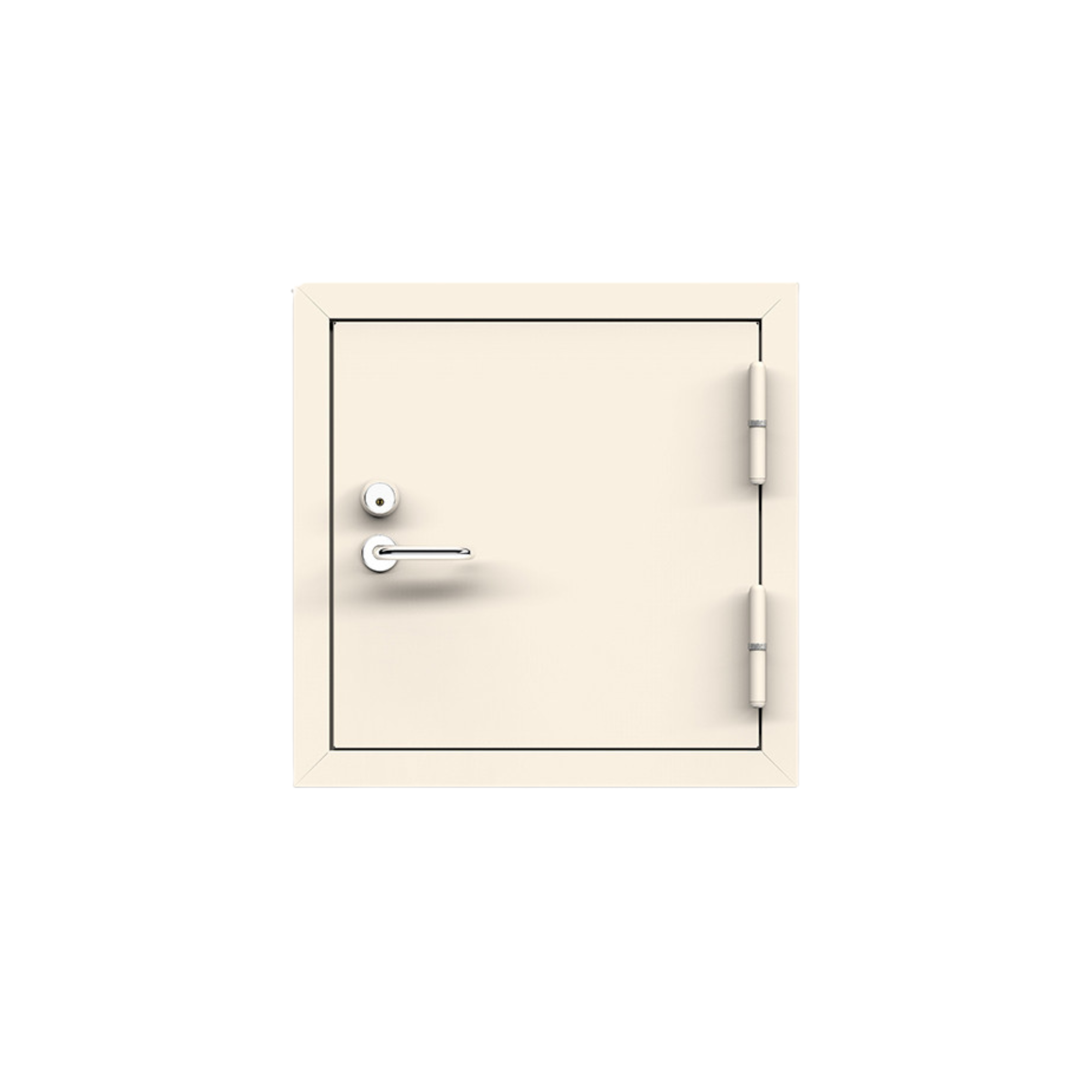

L6 Access Panel is a fire-rated inspection hatch designed for installation in walls and technical spaces. The panel is made of galvanized steel and intended for use in environments with high fire protection requirements. The construction ensures reliable fire resistance while providing safe and convenient access to installations for service and maintenance.
L6 is prepared for Abloy/ASSA locks but is supplied without lock case, cylinder, and handle. These are ordered separately. The panel is available in several standard sizes and can also be manufactured according to project-specific dimensions and requirements.
Model: L6 Access Panel
Applications: Access to installations where fire rating is required, such as plumbing systems, electrical installations, cabling, and technical equipment. Typical applications include bathrooms, laundry rooms, electrical cabinets, cable ducts, commercial premises, and public buildings.
Material:
Galvanized steel
Powder-coated in white (RAL 9010)
Sealing adapted for fire rating EI60
Locking options: Prepared for Abloy/ASSA (lock sold separately)
Left-hand hinged
YS (recessed model) or YM (with cover frame)
Custom RAL colour
L6 |
580×580* |
680×680 |
780×780 |
880×880 |
880×980 |
550×780 |
550×1080 |
* Size 580 × 580 mm is intended for a 600 × 600 mm opening. Supplied with a cover frame to conceal the installation gap.*
Always read the accompanying installation instructions carefully before starting the installation work.
Always follow the accompanying operation and maintenance instructions for correct use and care of the product.
What is an inspection hatch used for?
An inspection hatch, also known as an access panel, provides safe and convenient access to installations hidden behind walls or ceilings, such as pipes, valves, and electrical systems.
Where are inspection hatches installed?
Inspection hatches are installed in walls, ceilings, and service shafts where access to technical installations is required, in both residential and commercial buildings.
What size inspection hatch should I choose?
Choose a hatch size based on the installations behind the wall or ceiling. The opening should allow safe and easy access for maintenance and repairs.
Are inspection hatches available in different materials?
Yes, inspection hatches are available in galvanized steel, stainless steel, and aluminum, depending on durability and environmental requirements.
Are fire-rated inspection hatches available?
Fire-rated inspection hatches are tested according to standards such as EN 13501-2 and are available in classes like EI30, EI60, and EI120 for fire-protected constructions.
Can inspection hatches include additional features?
Yes, options include sound insulation, airtight sealing, and custom finishes to meet specific project requirements.
