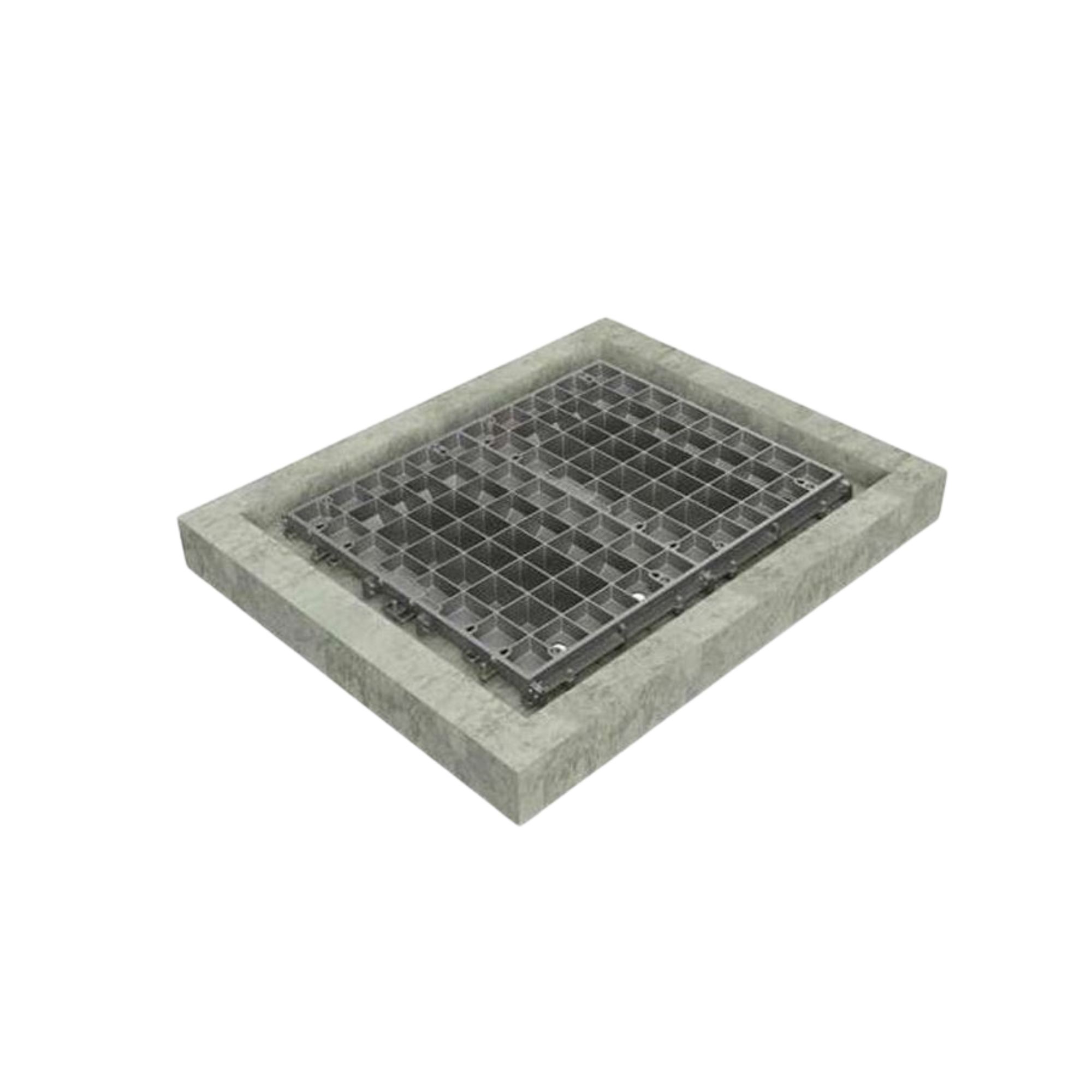

High-performance cast iron ground access cover for demanding environments such as airports, ports, and terminals
Need a ground access cover with fast delivery? We currently have 2 Gatic RRF units in stock.
- Clear opening: 1300 × 450 mm
- Two covers within a single frame, providing full access to the entire opening
- Load class: B125 kN
About Gatic
Gatic is designed for areas where ground access covers are exposed to very high loads and operational reliability is critical. In airports, terminal zones, service areas, and other surfaces with heavy or fast traffic, it is essential to have an access cover that remains stable, watertight, and capable of handling high loads over time. With load classes up to F900 and gas-, dust-, and water-tight construction, Gatic is a reliable choice for these demanding environments.
Gatic is available in multiple standard sizes and can be supplied as a single lid, channel lid, or complete lid set with beam. Custom dimensions are also available to meet specific project requirements, making it easy to select the right ground access cover for your project.
Model: Gatic
Applications: Gatic is a versatile ground access cover suitable for areas requiring high durability and safe access. It is ideal for airports, terminals, ports, highways, industrial zones, loading docks, logistics centers, parking areas, public squares, and other demanding environments.
Material: Cast iron
Available lid options: Single lid, channel lid, or complete channel set with beam
Dimensions: Available in multiple standard sizes and can be custom-made. See technical documents for details.
Load classes (according to EN 124):
- B125 kN – Light vehicle traffic
- C250 kN – Driveways, passenger cars
- D400 kN – Heavy vehicles
- E600 kN – Industrial areas
- F900 kN – Airports, ports, terminals, and extreme environments
Operation: Opened from above using a crane key or hatch key.
Note: Lids must be installed and removed in the correct sequence.
Burglar & Safety Grilles
Available with single lid, channel lid, or complete lid set with beam (modular system).
Always read the installation instructions supplied with your order carefully before beginning installation, as they may vary depending on configuration and selected options.
Installation must be carried out by qualified personnel and adapted to the specific project requirements.
Always follow the specific operation and maintenance instructions supplied with your order, as these may vary depending on model, material, and selected options.
To ensure optimal function and longevity, the ground access cover should be maintained regularly.
Which access cover is suitable for airports?
Gatic is a robust cast iron ground access cover designed to withstand extremely heavy traffic. It meets EN 124 standards and is ideal for airports, ports, and other high-load environments where safety and long service life are critical.
Which cast iron access covers handle heavy traffic?
Gatic covers are available in multiple load classes, from B125 for light traffic up to F900 for heavy industrial and airport environments. They can withstand heavy trucks and intense vehicle traffic.
What does load class F900 mean for ground access covers?
Load class F900 is the highest rating under EN 124, meaning the cover can withstand extreme loads up to 900 kN. This class is used in areas with very heavy and intensive traffic, such as airports, ports, terminals, and industrial zones. An F900 access cover is engineered to endure loads from aircraft, heavy trucks, and other demanding vehicles without performance loss over time.
Can Gatic covers be customized?
Yes. Gatic is available in several standard sizes but can also be custom-made to suit project requirements. It can be supplied as a single lid, channel lid, or complete lid set with beam.
Are Gatic access covers watertight and dustproof?
Yes. Gatic covers are gas-, dust-, and water-tight, making them suitable for both indoor and outdoor environments where sealing and durability are important.
Where can Gatic access covers be used?
Gatic is perfect for airports, ports, industrial yards, parking areas, and public spaces. They are suitable for both indoor and outdoor use where durability, safety, and reliability are required.
How are Gatic access covers opened and maintained?
Covers are opened using a crane key or hatch key. Regular maintenance is recommended to ensure long service life and proper operation.
What materials are used in Gatic access covers?
Gatic is made from cast iron for maximum strength and durability, making it ideal for high-load areas and heavy traffic environments.
