Inspection Hatch F1 & F2 for Drywall and Ceilings – Discreet Design and Easy Installation
Our inspection hatches F1, F2, and F1/F2 Lochplatte are designed to provide discreet, safe, and convenient access to installations behind interior walls and ceilings. All models feature aluminium frames and gypsum board inserts, ensuring a durable construction and seamless integration into walls and ceilings.
F1 is a classic, fixed inspection hatch with concealed push latches and fixed hinges, offering a secure and robust solution where the panel remains permanently in place.
F2 offers greater flexibility, as the hatch door can be removed when needed, making maintenance and access in confined spaces easier.
F1/F2 Lochplatte is specifically designed for installations requiring airflow, with integrated slots or perforations that combine ventilation with a clean, discreet appearance.
All hatches can be installed in both walls and ceilings and can be painted to match surrounding surfaces for a uniform and elegant finish. They are ideal for residential, commercial, and public environments, as well as technical spaces where both functionality and aesthetics are essential.
Model: Inspection Hatch F1 – Fixed Access Panel
Applications: Access to concealed installations in walls and ceilings, such as plumbing systems, electrical installations, cable routing, and technical equipment. Typical applications include residential buildings, offices, commercial properties, and public environments.
Material:
- Frame and surround made of aluminium profiles
- Gypsum board insert: 12.5 / 15 / 25 mm
Locking options: Push up lock (standard), square lock, cylinder lock, screwdriver lock, and hex (Allen) lock
Opening type:
- Hinged
- Left- or right-hand opening
- Fixed construction (non-removable)

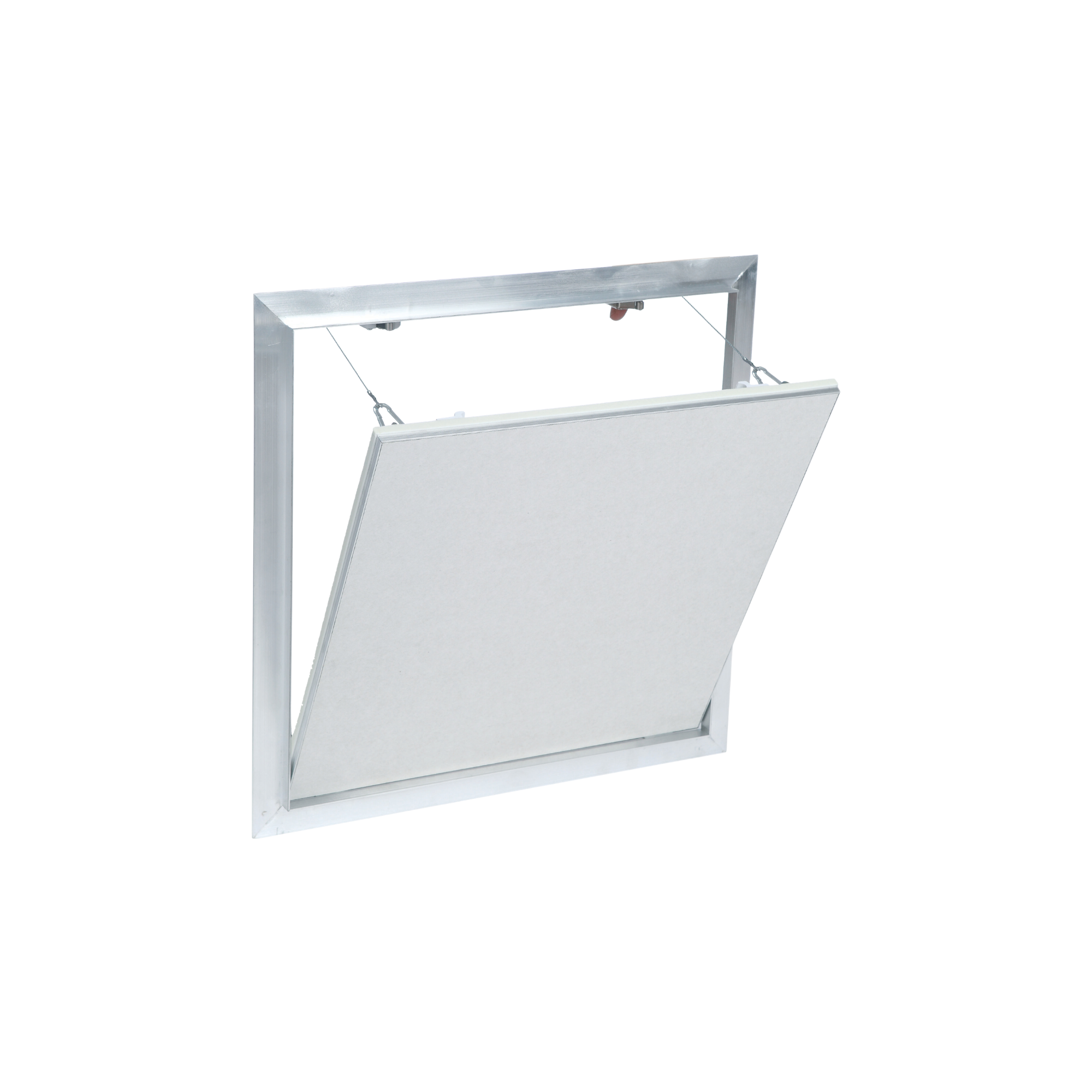

Model: Inspection Hatch F2 – Removable Access Panel
Applications: Access to concealed installations in walls and ceilings, such as plumbing systems, electrical installations, cable routing, and technical equipment. Typical applications include residential buildings, offices, commercial properties, and public environments.
Material:
- Frame and surround made of aluminium profiles
- Gypsum board insert: 12.5 / 15 / 25 mm
Locking options: Push up lock (standard), square lock, cylinder lock, screwdriver lock, and hex (Allen) lock
Opening type:
- Removable
- Bottom-hinged
- Left- or right-hand opening
Model: Inspection Hatch F1/F2 Lochplatte – Ventilated Access Panel
Applications: Access to concealed installations in walls and ceilings where ventilation or exhaust airflow is required, such as plumbing systems, electrical installations, cable routing, and technical equipment. Typical applications include residential buildings, offices, commercial properties, and public environments.
Material:
- Frame and surround made of aluminium profiles
- Gypsum board insert: 12.5 mm
Locking options: Square lock (standard), cylinder lock, or profile cylinder lock
Opening type:
- Removable
- Bottom-hinged
- Left- or right-hand opening
Optional RAL colour
Double-leaf version (custom dimensions available for installation in non-load-bearing drywall partitions)
F2 only
Sound insulation up to 42 dB (EN ISO 10140-2)
Air and dust tightness in accordance with DIN EN 12207
Air and dust tightness in accordance with DIN EN 12208
(when air and dust tightness is specified as an option)
Sound insulation up to 42 dB in accordance with EN ISO 10140-2
(when acoustic insulation is specified as an option)
F1 and F2 are available in several standard sizes (see below). Custom sizes can be manufactured on request.
F1 | F2 |
200×200 | 200×200 |
300×300 | 300×300 |
400×400 | 400×400 |
500×500 | 500×500 |
600×600 | 600×600 |
Always follow the accompanying operation and maintenance instructions for correct use and care of the product.
What is an inspection hatch used for?
An inspection hatch or access panel provides safe and convenient access to installations hidden behind walls or ceilings, including pipes, valves, electrical wiring, junction boxes, or other technical equipment. Installing a panel allows maintenance, troubleshooting, and servicing without opening or damaging walls or ceilings.
Where are inspection panels installed?
Inspection panels are commonly installed in walls, ceilings, and service shafts where access to technical installations is required. They are suitable for residential buildings, offices, commercial properties, and public facilities.
What size inspection hatch should I choose?
The panel size should be selected based on the technical installations behind the wall or ceiling. Ensure the opening is large enough for safe and efficient access during maintenance or repair work.
Are inspection hatches available in different materials?
Yes, inspection panels are available in galvanized steel, stainless steel, or aluminum. The material is chosen based on installation location, durability, corrosion resistance, and aesthetic requirements.
Are fire-rated inspection panels available?
Yes, fire-rated inspection panels are available and tested according to relevant standards. They are used in walls and shafts where fire protection is required, with fire classes such as EI30, EI60, or EI120, providing safety and compliance.
Can inspection panels include additional features?
Optional features can include sound insulation, air and dust tightness, and customized finishes to match building design and meet specific project requirements.
