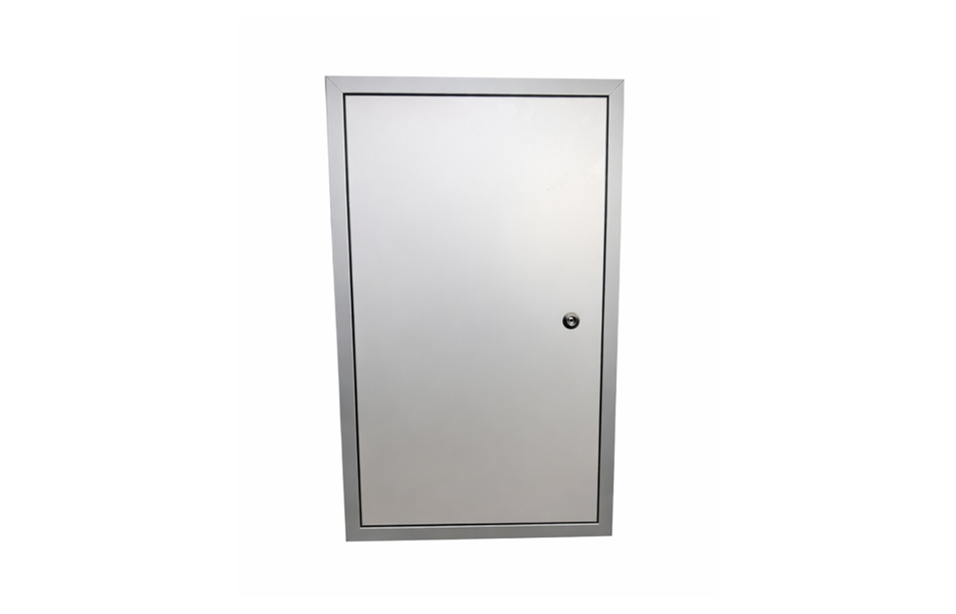

Model: EXT

Applications: Designed for facades and exterior walls where safe and discreet access to installations is required. The robust and weather-resistant construction makes the panel ideal for exposed environments with high demands on functionality and durability. Suitable for public, commercial, and industrial buildings with hidden installations such as electrical, plumbing, ventilation, and other technical equipment.

Material: Galvanized steel, stainless steel, or aluminum

Insulation: Insulated door panel, approximately 30 mm

Sealing: Equipped with a waterproof seal for protection against rain and moisture

Dimensions: Standard sizes from 200 x 200 mm to 600 x 600 mm

Custom sizes available on request

Maximum size: 1000 x 1200 mm (Clear opening)

Standard Color: RAL 9010 (white)

Opening Method: Manual, with hinges for easy operation

Locking Options: Fire department lock, square lock, or cylinder lock

Custom RAL color to blend seamlessly with the facade

Burglar and safety grille: 8 mm or 16 mm

Locking Options:

• Fire department lock – approved for emergency services master key system
• Square lock – simple and discreet opening
• Cylinder lock – enhanced security with individual key management

Aluminum Version:

• Tested for driving rain resistance according to EN 1027
• Water tightness according to EN 12208, class 2A (with cylinder lock)

Steel Version:

• Driving rain resistant according to EN 1027
• Water tightness according to EN 12208, class 3A (with cylinder lock)
• Water tightness according to EN 12208, class 9A (without cylinder lock)

The EXT wall access panel is available in several standard sizes ranging from 200×200 mm to 600×600 mm (see below).

Bespoke sizes can be manufactured upon request. Maximum size: 1000×1200 mm (Clear opening).

Always read the installation instructions included with your order carefully before starting the installation work, as these may vary depending on the model and optional features.

Installation must be carried out by qualified personnel and adapted to the specific conditions of the project.

Always follow the specific operation and maintenance instructions provided with your order. Instructions may vary between different models, materials, and optional features.

• Before operating the unit, ensure that there are no obstacles in the lid’s path of movement.
• The panel should be opened and cleaned at least once a year using clean water and a mild detergent with a soft cloth or sponge. Avoid abrasive cleaning products.
• Ensure that the space between the lid and frame is free of gravel and dust.
• The panel hinges should be kept clean and lubricated as needed.
• Make sure the seal around the frame is intact and functioning properly.

What is a Wall Access Panel used for?
A Wall Access Panel provides safe and discreet access to installations hidden behind walls and facades, such as pipes, valves, electrical wiring, or other technical equipment.

Where are Wall Access Panels installed?
They are installed in exterior and interior walls where service access is required, commonly in residential, commercial, and public buildings.

Can Wall Access Panels be customized for a project?
Yes, they can be custom-sized, made from different materials, and painted in any color to match the building and project requirements.

Can Wall Access Panels blend with the wall or facade?
Yes, some models can be clad with the same wall or facade material to create a discreet and seamless appearance.

What materials are Wall Access Panels made of?
They are typically made from galvanized steel, stainless steel, or aluminum, depending on durability, corrosion resistance, and design requirements.
