Wall panel and smoke shaft hatch in durable construction
versatile hatch for wall and smoke shafts

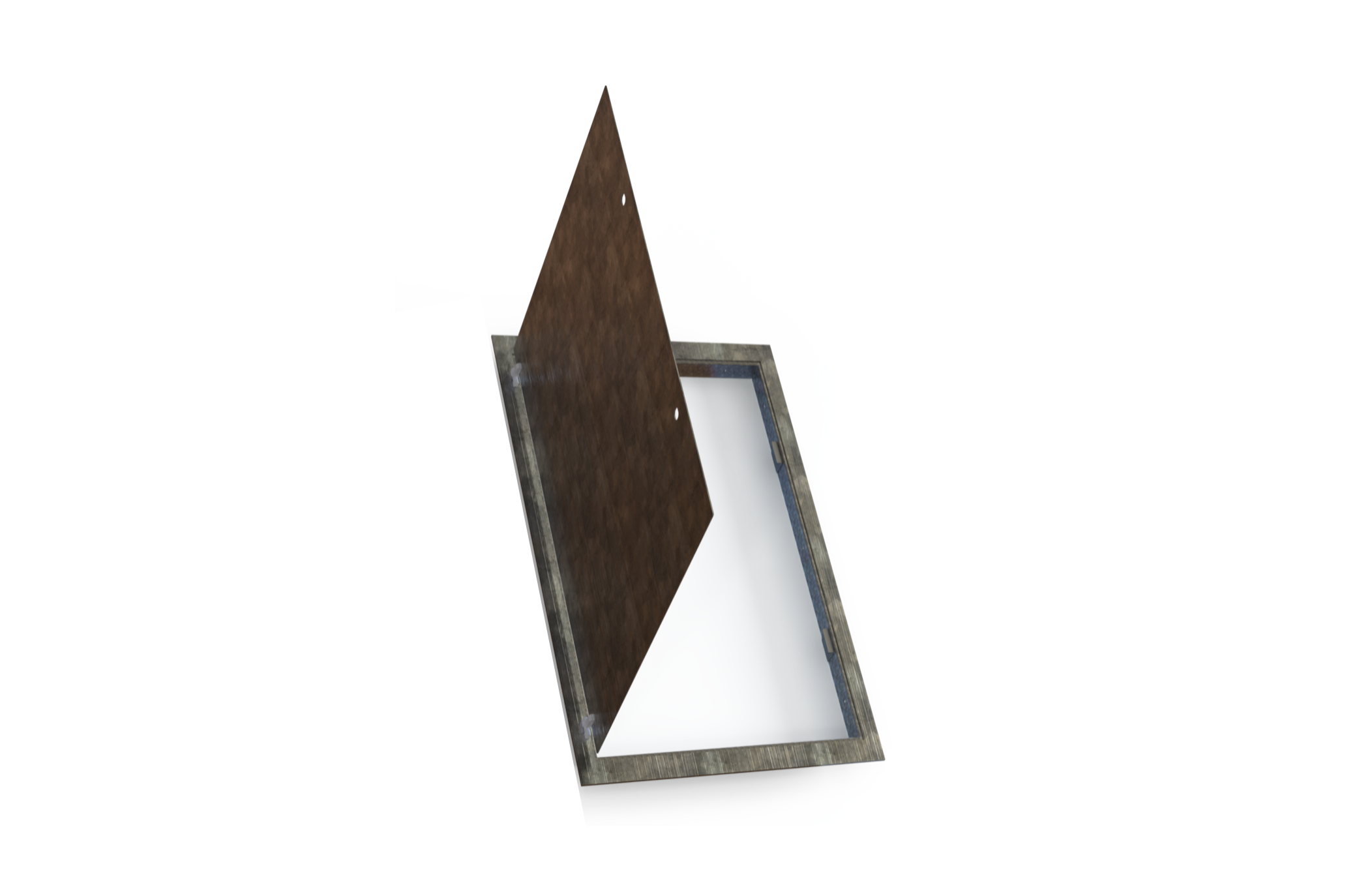

Axess is a durable and flexible hatch designed for installation in building wall or smoke shafts. It is manufactured in hot-dip galvanized steel, stainless steel, or aluminium—depending on the application and environment. The hatch comes with integrated hinges and can be made in custom dimensions, making it ideal for projects with specific requirements for access, safety, or aesthetics.

Material and Construction

– Manufactured in hot-dip galvanized steel, stainless steel, or aluminium

– Supplied with integrated hinges

– Lightweight in aluminium – extra durable in steel

– Customizable in both size and surface finish

Locking Options

– Fire department lock – approved for emergency services’ key systems

– Square key lock – simple and discreet opening mechanism

-Cylinder lock – for enhanced security

Options and Customizations

– Insulation integrated into the hatch construction

– Can be painted in any RAL colour for visual integration with the wall

– Compatible with security grilles for added protection in technical installations

Smoke Shaft Hatch – Safe Smoke Evacuation

Axess can also be supplied as a hatch for installation in smoke shafts. In this version, the hatch is bottom-hinged and held in place by magnets. A steel wire (2 meters as standard) enables manual opening from above when smoke evacuation is needed. The hatch is designed to release smoke gases from the shaft quickly and in a controlled manner.

Options for Smoke Shaft Hatch

– Insulation for thermal or acoustic requirements

– Custom wire length depending on shaft height

– Ventilation grille available as an option

Areas of Use

– Technical access hatches in building facades

– Smoke shafts in stairwells and technical areas

– Multi-residential buildings and public environments requiring discreet and secure installation

Advantages of Axess

– Robust and flexible construction

– Multiple locking and customization options

– Customizable in colour, size, and functionality

– Suitable as both a service hatch and smoke ventilation hatch

Installation and Recommendations

Axess is installed flush within the facade or smoke shaft.
To ensure optimal performance, the following is recommended:

– Adapt the mounting method to the wall structure

– Choose lock type and insulation based on site-specific needs

– Regular function checks, especially for magnet-hung smoke shaft hatches
